YMCA -- Saginaw, Michigan

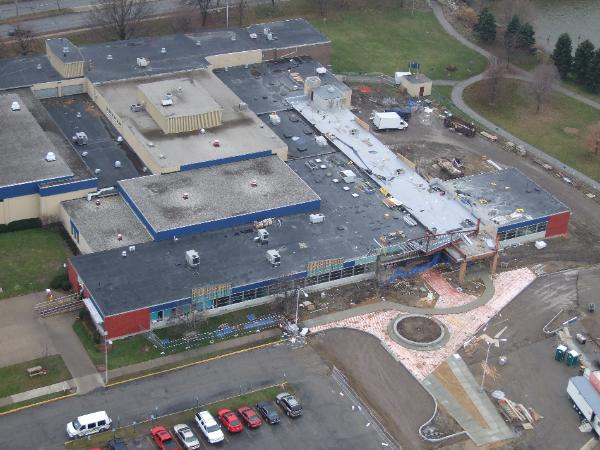

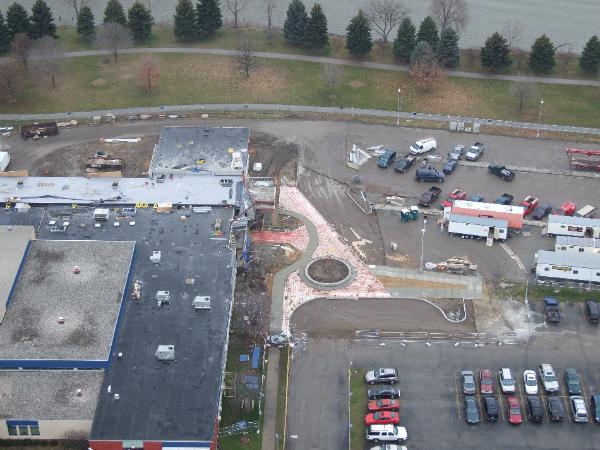

The Snow Melt entry was designed by Matt Dana
with Tommark Inc and Installed by Steve with Smillie

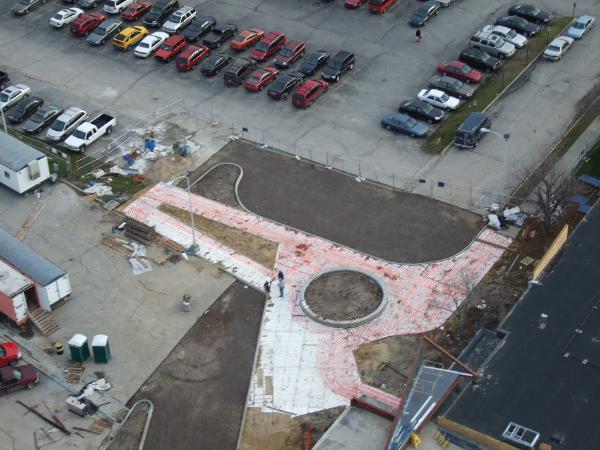

Plbg, & Htg. The entry is 4,287 Square Feet heated
with 9,000 feet of 3/4" Oxygen Barrier Tubing using
a maximum load of 658,000 Btu/Hr.

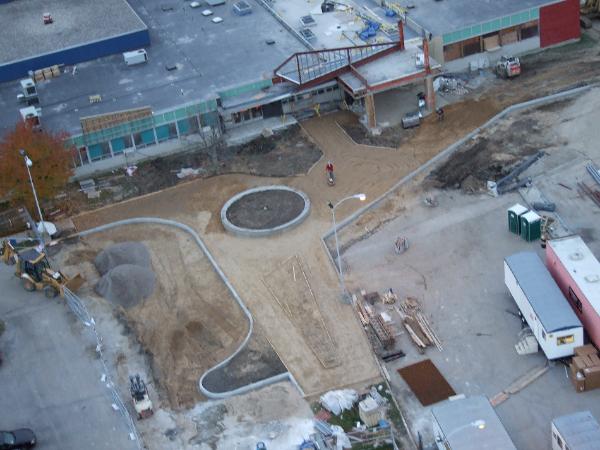

The cement entry was insulated from loosing btu's to
the earth.

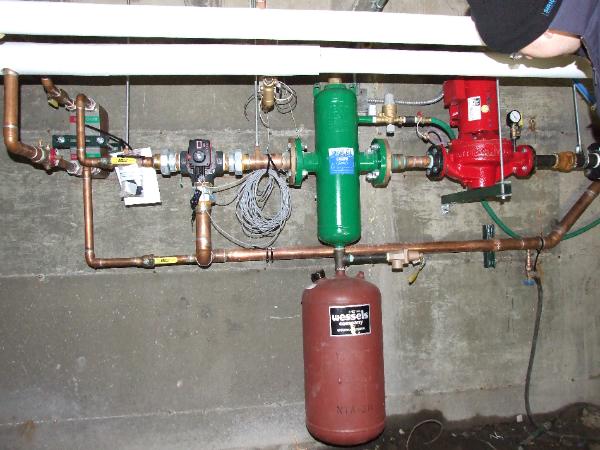

The system is heated with glycol using 55 Gallons
per minute at 100F using Patterson Pumps with a
Patterson Brazed Plate Heat Exchanger.
with Tommark Inc and Installed by Steve with Smillie
Plbg, & Htg. The entry is 4,287 Square Feet heated
with 9,000 feet of 3/4" Oxygen Barrier Tubing using
a maximum load of 658,000 Btu/Hr.
The cement entry was insulated from loosing btu's to
the earth.
The system is heated with glycol using 55 Gallons
per minute at 100F using Patterson Pumps with a
Patterson Brazed Plate Heat Exchanger.
 |
| |
 |
| |
 |
